EP. 45 BM (Black Matrix) Display Glossary.zip

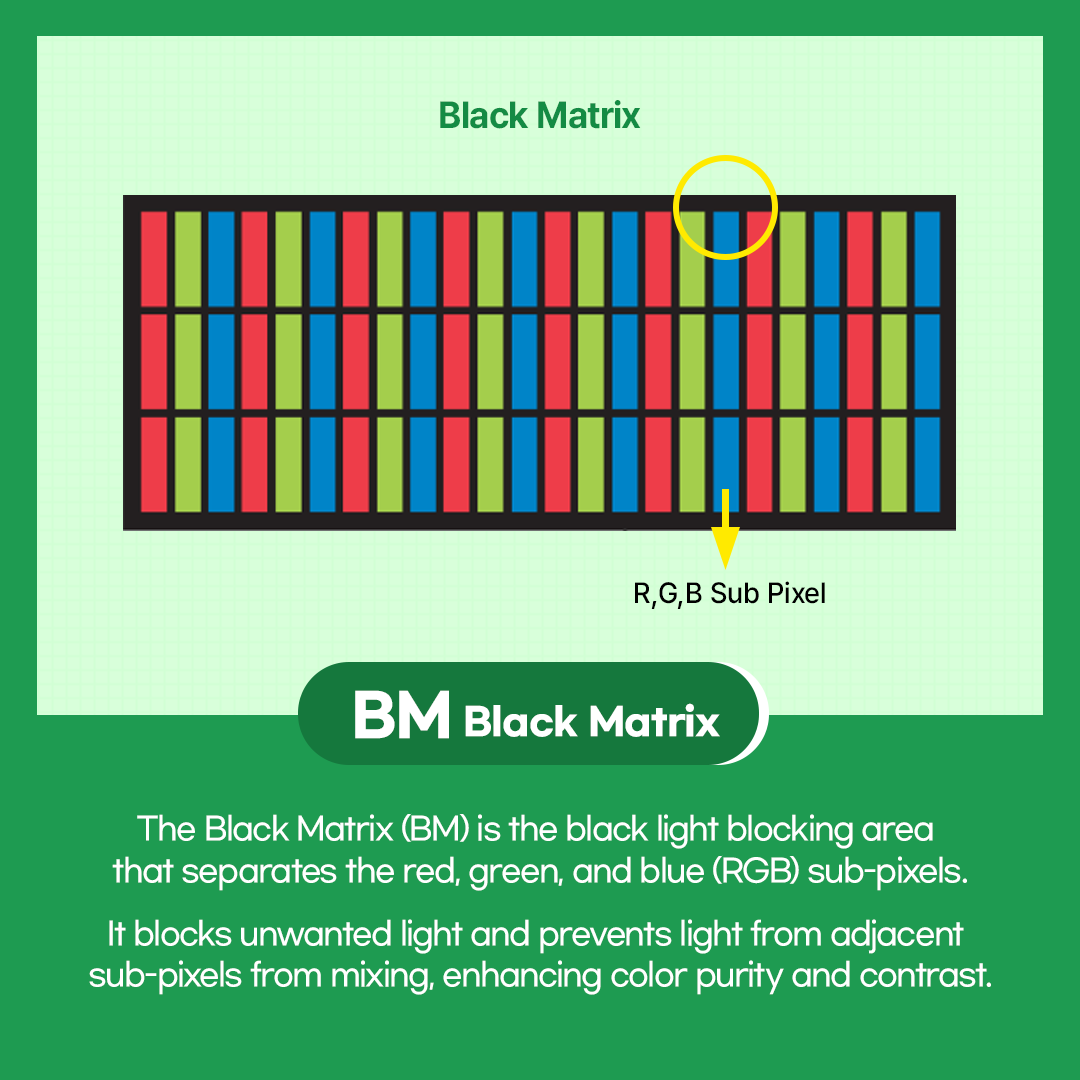

Black Matrix R,G,B Sub Pixel BM Black Matrix The Black Matrix (BM) is the black light blocking area that separates the red, green, and blue (RGB) sub-pixels. It blocks unwanted light and prevents light from adjacent sub-pixels from mixing, enhancing color purity and contrast.

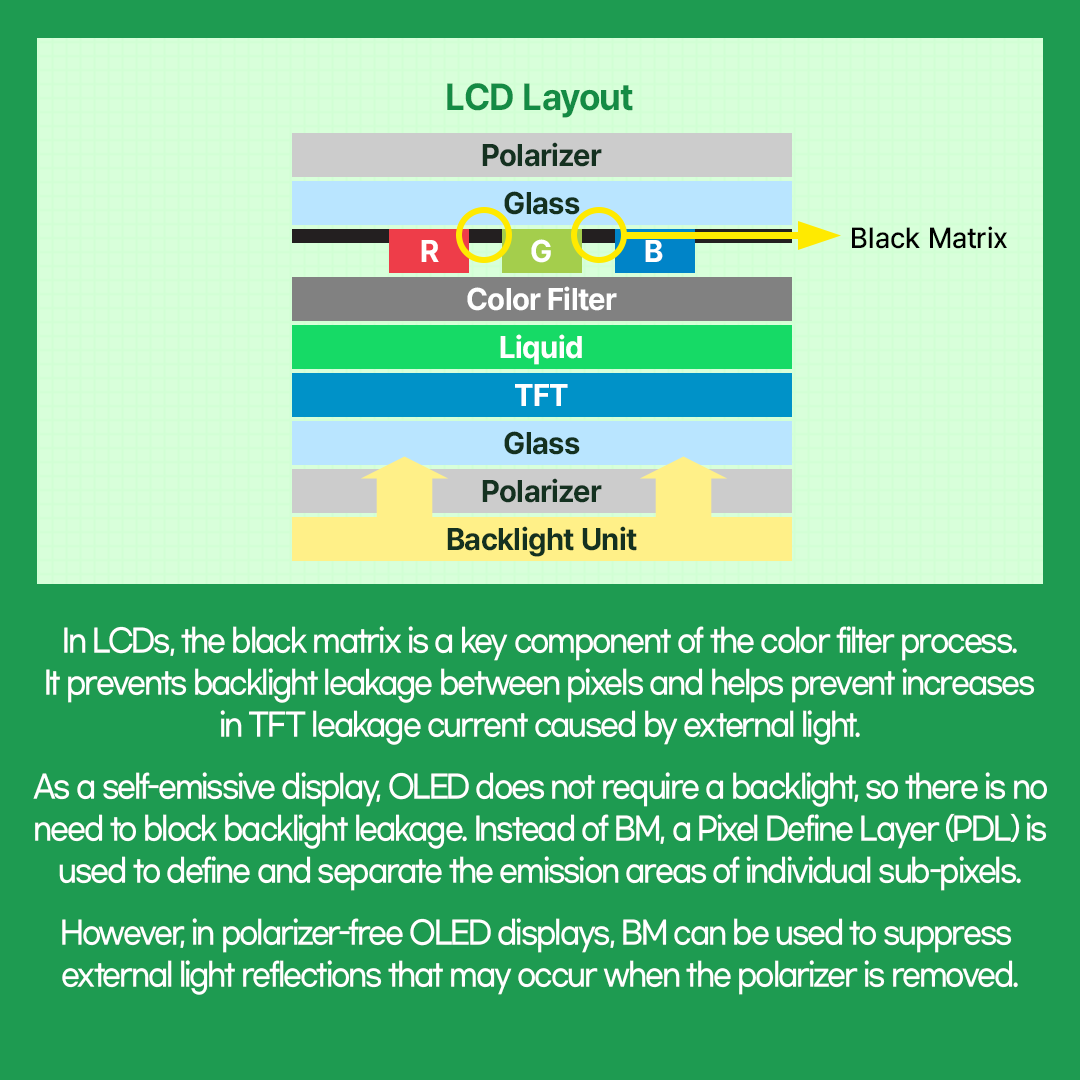

LCD Layout Polarizer Glass R G B Black Matrix Color Filter Liquid TFT Glass Polarizer Backlight Unit In LCDs, the black matrix is a key component of the color filter process. It prevents backlight leakage between pixels and helps prevent increases in TFT leakage current caused by external light. As a self-emissive display, OLED does not require a backlight, so there is no need to block backlight leakage. Instead of BM, a Pixel Define Layer (PDL) is used to define and separate the emission areas of individual sub-pixels. However, in polarizer-free OLED displays, BM can be used to suppress external light reflections that may occur when the polarizer is removed.
Display Glossary.zip All about display-related terminology! What will be the next term?
